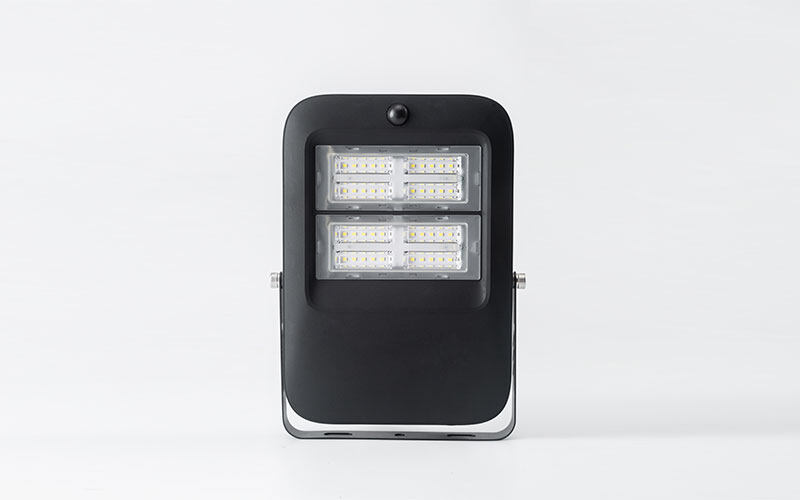

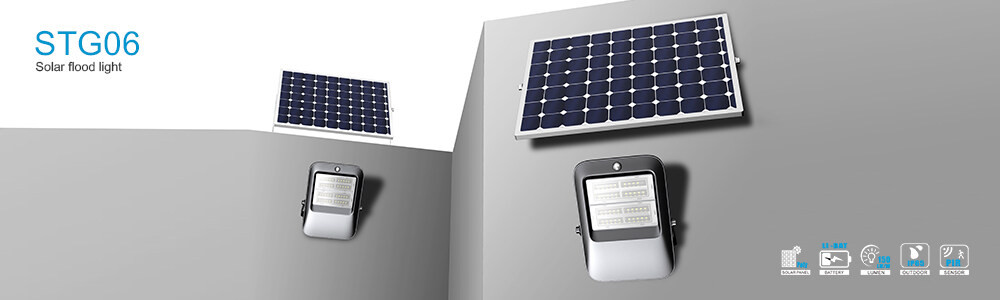

Solar flood light with remote control - STG06
Model: STG06
Fashion and simple design with multiple control modes to fulfill different demand. Own-developed control system increase 20% charging efficiency, 90% light transmittance and up to 150lm/W output.

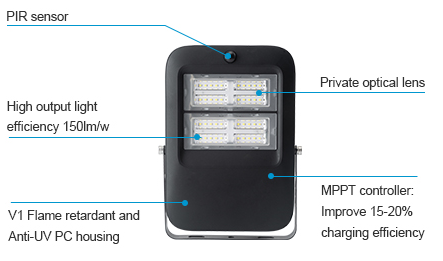

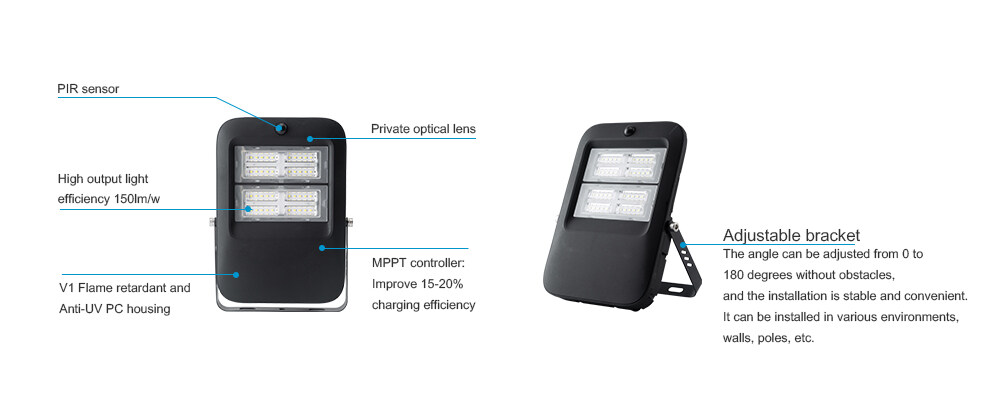

Advantages:
- Over 2000 times life span cycle.
- High lumen output, reach 1500lm (Efficiency: 150lm/w)
- MPPT controller improve 20% charge efficiency
- PC housing with V1 fire protection level

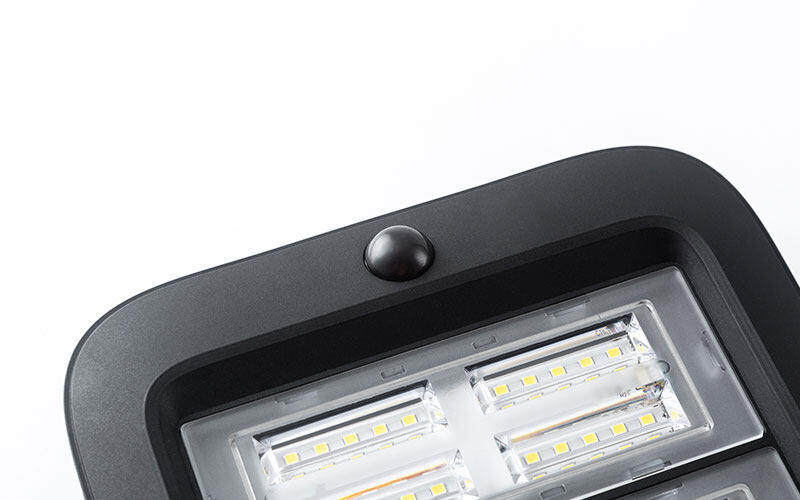

- PIR sensor + Remote controller
Techinical Specification:
| STG06 Solar Flood Light Technical Data |
| Solar Panel |
12V 20W Monocrystalline |
| Battery Capacity |
6.4V 12AH LiFePO4 |
| LED Chips |
SMD2835 |
| Controller |
PIR Sensor |
| Color Temperature(K) |
3000K/4000K/6000K |
| Real Power & Lumen |
10W 1500lm |
| Installation Height |
3-5m |
| Beam Angle |
90°*110° |
| Body Material |
ABS+PC |
| Raining Days |
2-3 Days |
| IP Rating |
IP65 |

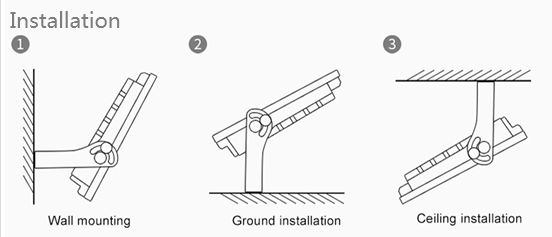

| Mounting Type |
Pole or Wall |

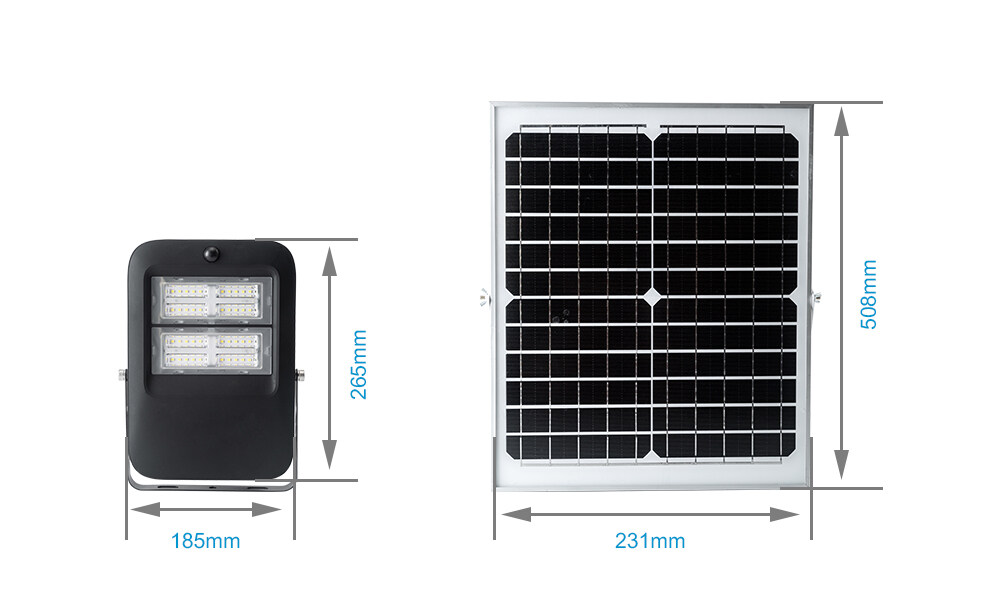

| Product Size |
265*185*45mm |
| Charge Time |
8-10hours |
| Working Time |
20-24hrs |
| Charge Temperature |
0-60℃ |
| Discharge Temperature |
0-60℃ |
| Storage Temperature |
0-45℃ |
| Finish Color |
Black |
| Warranty |
2years |
Function:

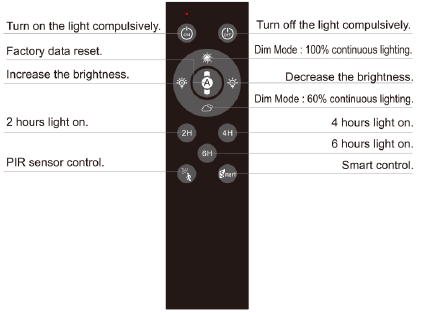

- Different modes selected by remotes control based on your location and demands.

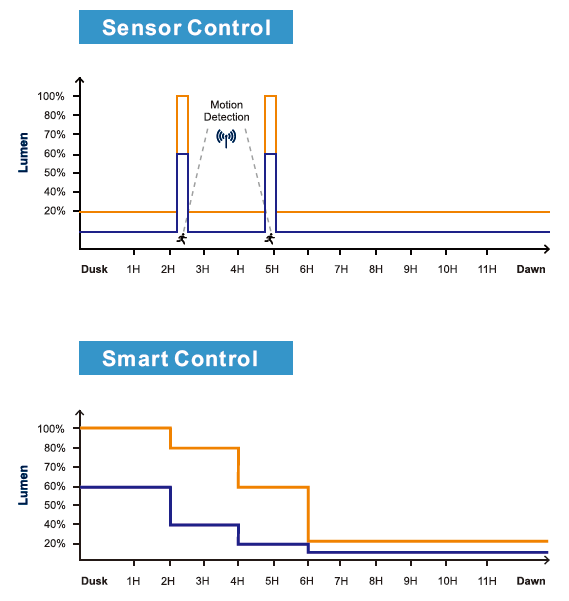

- Mode 1: Sensor Control, PIR motion sensor control, 100% light ON when it is triggered, back to 20% light ON without triggered after 15s.
- Mode 2: Smart control, it can continuous light on during 12 hours.

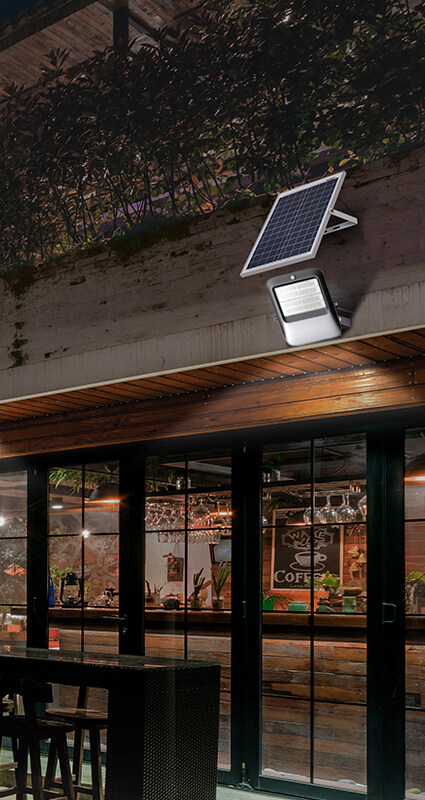

Application:
- Street or Road
- Garden, Yard or Garage
- Park, Stadium

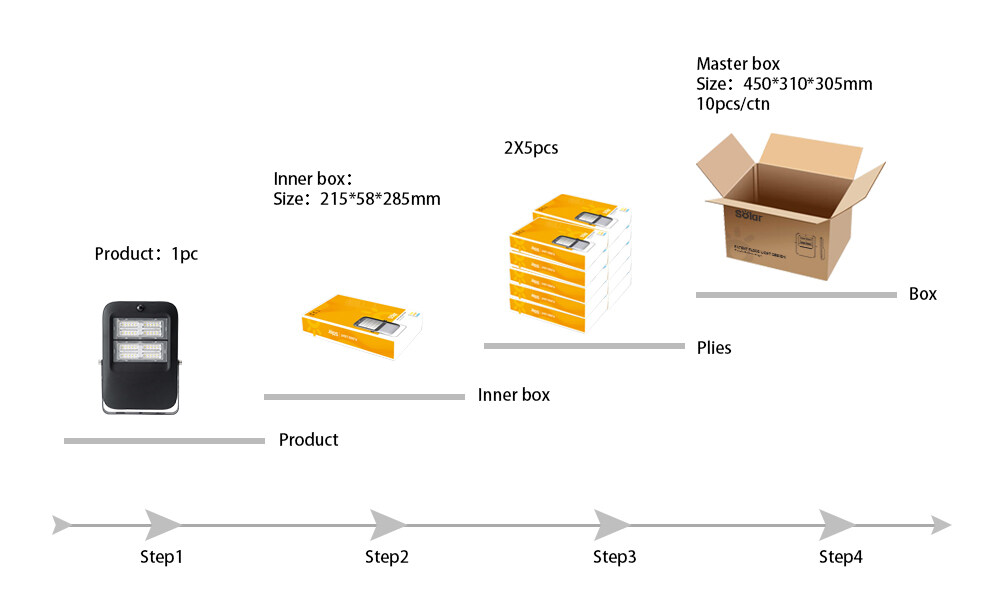

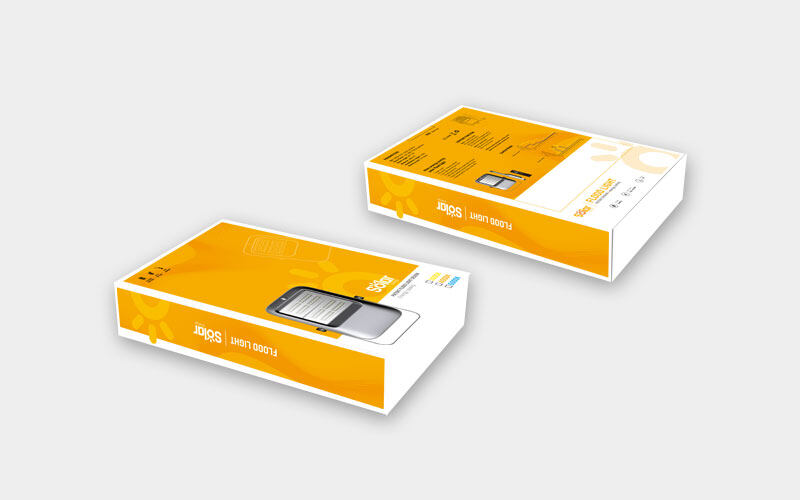

Package：
